DUO Door Series
Therapy/RF

Fully integrated! Therapy and RF shielding all wrapped into one beautiful package.

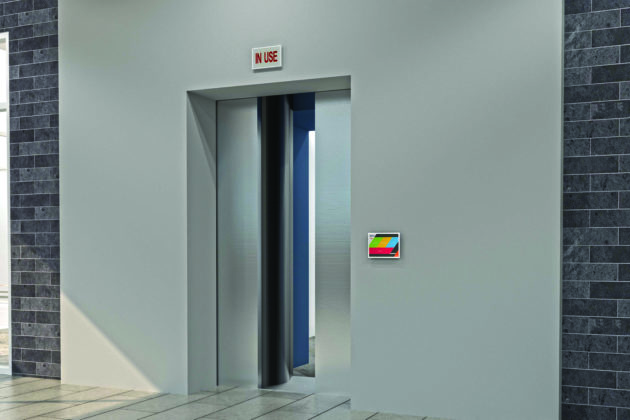

The one and only fully integrated dual-modality (Therapy and RF) shielded door system in existence. The GUARDIAN DUO door series comes in Slide and Bi-Parting configurations. Developed, proven and tested in the field, these doors eliminate the need for a space-constraining, two-door system. For integrity, reliability, safety, speed, and the most advantageous use of space, simply open a GUARDIAN DUO Slide or Bi-Parting door from NELCO. This advanced system eliminates the need for mazes and separate RF doors so patient throughput can be increased while reducing construction costs and time into and out of the vault. Included are state-of-the-art door controls with our Einstein touch-screen system, as well as an abundance of aesthetically pleasing finishes.

Features & Highlights

Space Savings
Eliminates need for mazes and space for a two-door system

Cost Savings
The ingenious integration of therapy and RF into one single dual-modality door reduces construction and installation costs and eliminates the need for pressure release panels

Productivity
Single entry and maze elimination increase patient throughput

Performance
Highly efficient, low-maintenance operating system

RF Performance
RF shielding effectiveness of 100 dB at 100 mHz

Versatility
Can be customized by size, shielding or installation method. Any system. Any manufacturer.

Throughput
Fast, single-door system yields increased and seamless patient throughput. RF seals actuate in less than two seconds for both open and close

Accessibility
Single opening and closing leads to faster access to patients

Safety
Ultimate patient and staff safety with features such as battery backup, reversing edges, and motion sensors. Fully integrated dual-modality door eliminates the need for a two-door entry and any possibility of entrapment

Einstein Door Control
Included with every system

Warranty
One year Specifically Engineered for • ViewRay® MRIdian® • Elekta Unity MR-Linac

Top-Line Tech Specs

Product
GUARDIAN™ Slide or Bi-Parting DUO Door System

Dimensions
Standard clear opening is 4′ x 7′ • 1,220 x 2,135 mm
Custom sizes available

Operating System
State-of-the-art, fully automatic operator with press wall switch for ease of use, safety, and reliability

Exterior Finish
Stainless steel interior finish for RF shielding is standard. Endless number of custom interior and exterior finishes available to complement and enhance your department

RF Shielding
RF jamb assembly can be connected to any manufacturer’s RF shield system for the ultimate in versatility
