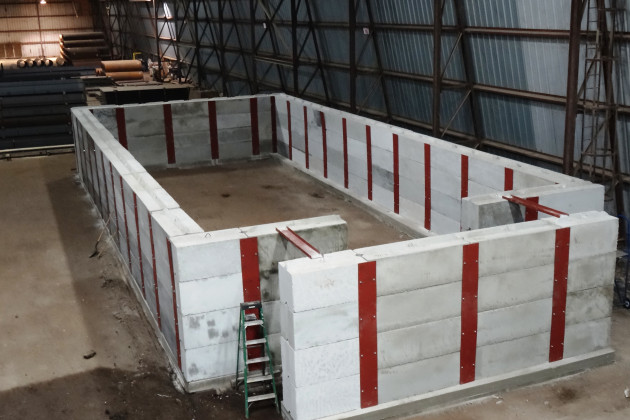

NELCO’s MegaShield concrete blocks have been used for industrial projects such as industrial x-ray booths, cargo-scanning facilities, and the storage of radioactive materials, to name a few.

MegaShield precast blocks have many advantages over traditional poured in place concrete by manufacturing the blocks in a controlled environment NELCO can guarantee the shielding integrity of each MegaShield block. With no forms to set up and take down, and no time wasted waiting for concrete to cure, MegaShield can save megatime on your construction schedule by allowing multiple trades to work side by side while the blocks are installed.

Whether you are looking for a permanent solution or a modular solution for leased space the MegaShield system can meet all your requirements.

Features & Highlights

  • Modular design
  • Shortened construction schedule
  • Complies with seismic requirements
  • Manufactured locally to reduce shipping costs

Uses

Non-Destructive Testing
Industrial X-Ray Shielding

Top-Line Tech Specs

Standard Densities
147 lbs. per cubic foot
240 lbs. per cubic foot
Custom densities available
Standard Dimensions
Height Width Depth
2’ / 610mm 6’ / 1830mm 2’ / 610mm
2’ / 610mm 5’ / 1524mm 2’ / 610mm
2’ / 610mm 4’ / 1220mm 2’ / 610mm
2’ / 610mm 3’ / 915mm 2’ / 610mm
Custom sizes available
