Whether you’re looking for an Interlocking lead brick to provide radiation shielding, square edge lead brick for ballast or a machined lead brick for nuclear applications NELCO has the lead brick to fit your needs in numerous alloys and sizes. We can also custom manufacture lead bricks to the size and alloy you require. Lead bricks are sold unfinished but are available in prime painted, epoxy painted or powder coated to your specifications.

Interlocking Lead Bricks
Interlocking lead bricks are cast brick with a tongue and groove design with a shoulder on all four sides. These bricks interlock to provide optimum shielding for radiation.



Features & Highlights

Thickness Width Length Weight
¾” 4” 12” 15 lbs.
1” 4” 12” 20 lbs.
1.5” 4” 12” 30 lbs.
2” 4” 12” 40 lbs.
Custom Sizes available
Square Edge Lead Brick
Square edge lead bricks are either cast or cut from rolled plate lead. The standard size for the brick is 2” x 4” x 8” (51mm x 102mm x 203mm) custom sizes are available per your specification.

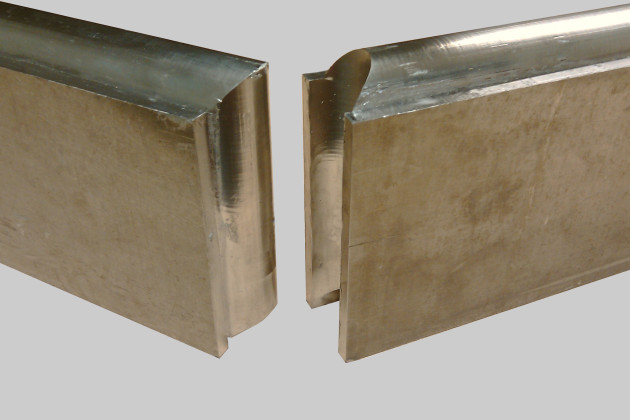

Machined Lead Brick
Machines lead bricks are cut and machined from rolled plate. The brick can be machined with varied interlocking designs to fit any application. The machined lead brick is available in the following sizes:
Thickness Width Length Weight
¾” 4” 12” 15 lbs.
1” 4” 12” 20 lbs.
1.5” 4” 12” 30 lbs.
2” 4” 12” 40 lbs.
2.5” 4” 12” 50 lbs.
Custom sizes available

Uses

Uses:
Radiation Shielding
Hot Cells
Glove Boxes
Radioactive material storage and transportation
Ballast
